Nanosecond pulsed fiber lasers: A flexible solution for cleaning and surface functionalisation

The technology drives higher process efficiency and reduced residual heating of the substrate material.

FIGURE 1. Handheld laser cleaning head.
FIGURE 1. Handheld laser cleaning head.
(Courtesy: 4JET Technologies GmbH)

The nanosecond fiber laser has long been the source of choice for reliable, cost-effective marking on many materials. In recent years, however, new nanosecond fiber lasers have been developed that transcend the marking application space. Preserving the relatively low price point and maintenance-free value proposition of fiber lasers, these new sources, characterised by higher pulse energies, increased peak powers, and greater average powers, are now displacing incumbent technologies for micromachining applications such as thin-section cutting, joining, and surface treatment.

At the vanguard of this revolution is the new range of nanosecond fiber lasers from SPI Lasers (Southampton, England), capable of producing up to 50 kW peak power and 250 W average output. Utilising directly modulated seed laser technology and PulseTune functionality, these lasers provide versatile pulse duration control from 3 to 2000 ns, enabling the output to be optimised for use in cleaning, ablation, and surface functionalisation. Key to this is the characteristic temporal shape of the pulses that are produced. These pulses are distinguished by a fast-rising edge followed by an exponentially decaying tail.

Compared to a more-Gaussian pulse shape, the PulseTune output exceeds thresholds for ablation earlier in time, enabling a greater proportion of the total pulse energy to be utilized and ultimately leads to higher process efficiency and reduced residual heating of the substrate material. Unlike traditional Q-switched lasers, the PulseTune functionality also enables peak powers to be maintained at high pulse repetition frequency, allowing increases in speed for some processes. Pertinent to cleaning applications, these new nanosecond fiber lasers also offer a range of beam quality options, providing another dimension for optimising energy and peak power density, leading to best-possible coverage of the surface area.

Laser cleaning and ablation

When cleaning a surface, we are primarily interested in the removal of an unwanted layer with minimal impact to the underlying bulk material. Existing processes for this include mechanical brushing, sand or grit blasting, and chemical or dry ice treatment. Both brushing and blasting can be extremely dirty and noisy with high levels of consumable material and machine wear. Chemical treatment, on the other hand, can involve solvents that are hazardous to the environment, leading to high cost of consumables and waste disposal. Laser cleaning offers a solution for these issues while providing a greater level of control in the delivery of energy to the surface, making it more precise and reproducible with much less waste material.

Laser cleaning is also surprisingly scalable, with solutions becoming available at both the micro-level and for very large surface areas associated with the cleaning of aircraft or buildings. For this reason, commercial laser cleaning systems are being developed with a multitude of different architectures. Some systems are semi-portable with handheld process heads, which incorporate at least one axis of galvo-scanning to raster the beam over the surface to be cleaned (FIGURE 1). Other systems employ motion control stages for high-precision processing or robotic arms for multi-dimensional surface cleaning or remote processing, which is particularly useful for the decommissioning of nuclear facilities.

It is important to note that the mechanisms of light-matter interaction are not the same for all laser cleaning applications. Effective cleaning may include a combination of ablation, evaporation, melting, and melt ejection by the creation of vapour pressure. Generally speaking, the efficacy of a cleaning process is dependent on a number of parameters. In the ideal situation, the laser light should be well absorbed in the layer to be cleaned, but below the relevant process thresholds for the substrate material. In this way, the process can be made to be self-limiting such that over-processing will not cause significant damage to the substrate. This can be achieved by optimising the laser wavelength or by adjusting beam parameters such as the pulse energy, pulse duration (peak power), and beam profile (energy and peak power density). Key performance indicators for laser cleaning often include surface quality, edge quality, and process speed.FIGURE 2. An example of selective removal of powder coatings from a metal plate.FIGURE 2. An example of selective removal of powder coatings from a metal plate.

The removal of painted or anodised surfaces has become the subject of substantial commercial interest in recent times and is ideally suited to laser cleaning. Empirical tests have shown that the quality and speed of cleaning can vary significantly depending on the thickness, chemical composition, colour, and surface finish of the coating and substrate. This emphasises the importance of optimising the laser output for the job at hand. FIGURE 2 shows the cleaning of layers from an aluminium plate that has been given yellow followed by red powder coatings. The output of the laser was optimised to selectively remove a layer at a time, without damaging the one below. In a final step, the bare metal was white-marked using the same laser to improve the image contrast.FIGURE 3. Levels of rust or oxide corrosion in metal (a) and an example of rust removal from a steel chain (b).FIGURE 3. Levels of rust or oxide corrosion in metal (a) and an example of rust removal from a steel chain (b).

The removal of rust and oxide layers from metals is another laser cleaning application that is gaining popularity due to the speed and flexibility that it offers. The process of removing rust from a metal appears to be the same as removing a painted layer, but there is a key difference. Rust and oxides are able to chemically corrode the bulk material, pitting and penetrating such that they are not just present on the surface (FIGURE 3). To fully remove high levels of rust, it is necessary to also engrave a thin layer of the substrate. The important takeaway is that the laser parameters needed to efficiently remove surface rust are not the same (in fact, practically opposite) as the parameters needed to best remove penetrating rust.

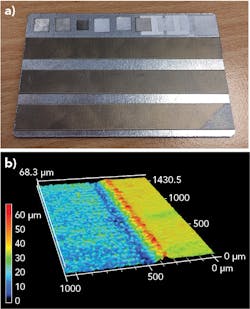

Laser cleaning is also replacing traditional methods for weld preparation whereby protective galvanic layers are selectively removed from metals before they are joined. FIGURE 4 shows the removal of zinc oxide from mild steel in readiness for welding and subsequent re-galvanisation. For this application, the longest, more-energetic nanosecond pulses were found to be beneficial for total oxide removal and best edge quality. Process speeds of >100 mm2/s are achievable at 200 W average power.

FIGURE 4. Removal of zinc oxide from mild steel for weld preparation.FIGURE 4. Removal of zinc oxide from mild steel for weld preparation.

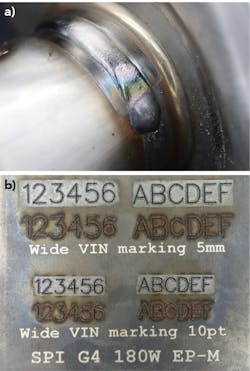

At the opposite end of the application cycle, laser cleaning is being employed for postprocessing, providing both aesthetic and functional benefits. FIGURE 5 shows the cleaning of a stainless steel weld and a laser-engraved vehicle identification number (VIN), for a higher-quality finish and improved legibility. In the latter case, the same 200 W nanosecond fiber laser was used for the engraved mark and for the cleaning pass by re-optimisation of the laser parameters.FIGURE 5. Laser cleaning of a stainless steel weld and post-process cleaning of a laser-engraved vehicle identification number (VIN).FIGURE 5. Laser cleaning of a stainless steel weld and post-process cleaning of a laser-engraved vehicle identification number (VIN).

Demand for laser cleaning is not only being generated from traditional markets, but also from new end-user verticals such as the rapidly growing e-mobility industry. This is driven by applications such as the stripping of PEEK, PI, and PAI dielectric coatings from motor hairpins, the removal of specialised coatings from battery foils, and the cleaning of automotive rubber tyre mould tools.

Casting the net wider, in the production of consumer electronics, new nanosecond fiber lasers are replacing solid-state sources to selectively and precisely remove thin films of visibly transparent, electrically conductive layers from glass. An example of this is shown in FIGURE 6, where indium tin oxide (ITO) has been quickly and effectively removed for edge deletion on display panels. Typical layers of this nature can be removed at a rate of nearly 20 cm2/s using a 200 W nanosecond pulse fiber laser.FIGURE 6. Edge deletion of ITO from a display panel with no damage to the glass substrate.FIGURE 6. Edge deletion of ITO from a display panel with no damage to the glass substrate.

Laser surface functionalisation

In a further expansion of the application space, the latest nanosecond fiber lasers venture beyond cleaning, now lending themselves to surface functionalisation applications that had been previously considered the exclusive domain of ultrafast sources. Driven by improved peak powers and power densities, nanosecond fiber lasers are now driving developments for both the increase and decrease of surface friction coefficients, reducing drag in fluid dynamics or increasing the efficiency of mechanical breaking systems. FIGURE 7 shows an example of laser surface polishing, arising from controlled Marangoni flow, which is interesting for the field of high-precision tools, dies, and medical implants.FIGURE 7. Laser polishing of stainless steel plate.FIGURE 7. Laser polishing of stainless steel plate.(Courtesy: Heriot-Watt University)

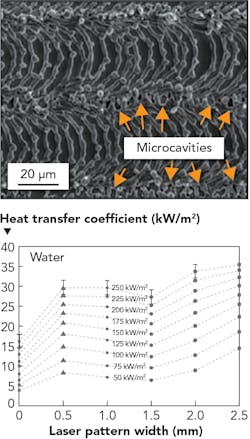

Another exciting area of surface functionalisation that is benefiting from the latest breed of nanosecond fiber lasers is laser texturing of stainless steel for improvements in distillation, petrochemistry, refrigeration, and nuclear power generation applications. In this process, it is possible to create microstructures that significantly increase the nucleate pool heat transfer coefficients, improving boiling efficiency not only for pure fluids, but also for binary mixtures (FIGURE 8).FIGURE 8. Laser texturing of stainless steel for improving boiling efficiency of fluids.FIGURE 8. Laser texturing of stainless steel for improving boiling efficiency of fluids.(Adapted from P. Zakšek et al., Nanoscale Microscale Thermophys. Eng., 24, 1, 29–42 [2019])

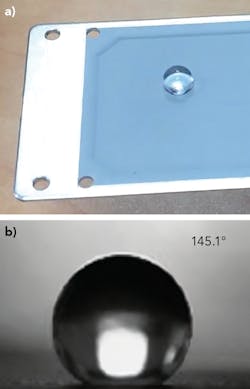

New nanosecond laser texturing techniques can also be applied to control the wettability of surfaces, to provide hydrophobic and hydrophilic properties. This is an important property for components used in aquatic media or other aggressive environments to prevent corrosion, and prolong lifetimes. FIGURE 9 shows the functionalisation of stainless steel by a nanosecond pulsed fiber laser, producing a hydrophobic surface with contact angles in excess of 145°.FIGURE 9. Hydrophobicity of stainless steel by nanosecond pulsed fiber laser processing.FIGURE 9. Hydrophobicity of stainless steel by nanosecond pulsed fiber laser processing.(Adapted from M. Conradi et al., Coatings, 9, 9, 592 [2019])

Offering a flexible, cost-effective parameter space, new nanosecond fiber lasers are enabling the next generation of sources for cleaning, ablation, and surface functionalisation, allowing the user to selectively remove material with speed, control, and consistency. An increasingly diverse range of industries across the globe are turning to these innovative manufacturing tools to enhance productivity and simultaneously drive down costs. From markets as diverse as battery and e-mobility to automotive and solar, the flexible characteristics of nanosecond pulses are hard to beat.
